Spider/Radar Chart


Show more of same type...            Show more using same keywords...

Watch the video tutorial here.

Description

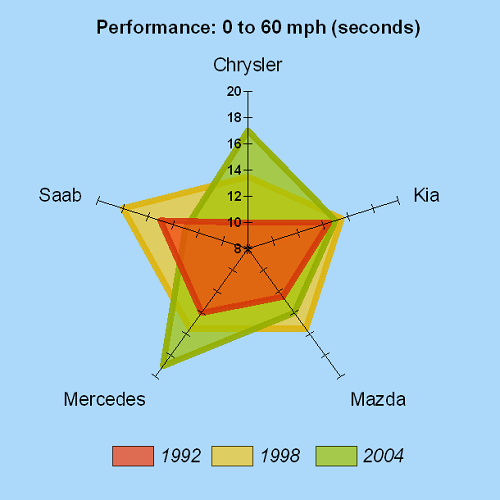

This plot type is ideal for displaying and comparing multivariate data. A custom dialog is provided for control of axes, including the ability to set each axis to a different scale.

With a few datasets, Origin’s color transparency feature can be used to overlay datasets for comparison. With many datasets, it is easy to set up the plot properties and then separate out the datasets to multiple layers to compare them side by side.

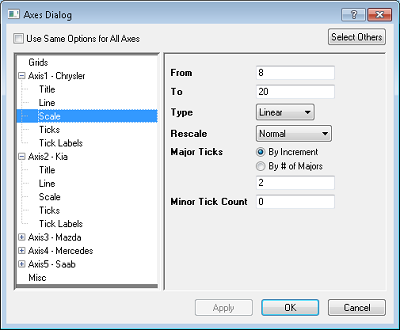

Use custom axis dialog to set properties for individual axes. Set all properties to be same for all axes, using the “Use Same Options for All Axes” check box. Set specific properties to be same for all axes by selecting desired property and then clicking the “Select Others” button.

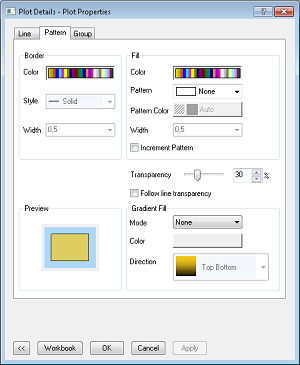

Set fill color to increment across plots, and set Fill Area transparency independent of border line transparency.
