Summary:

Use a small number of latent variables to explain variability among many observed variables.

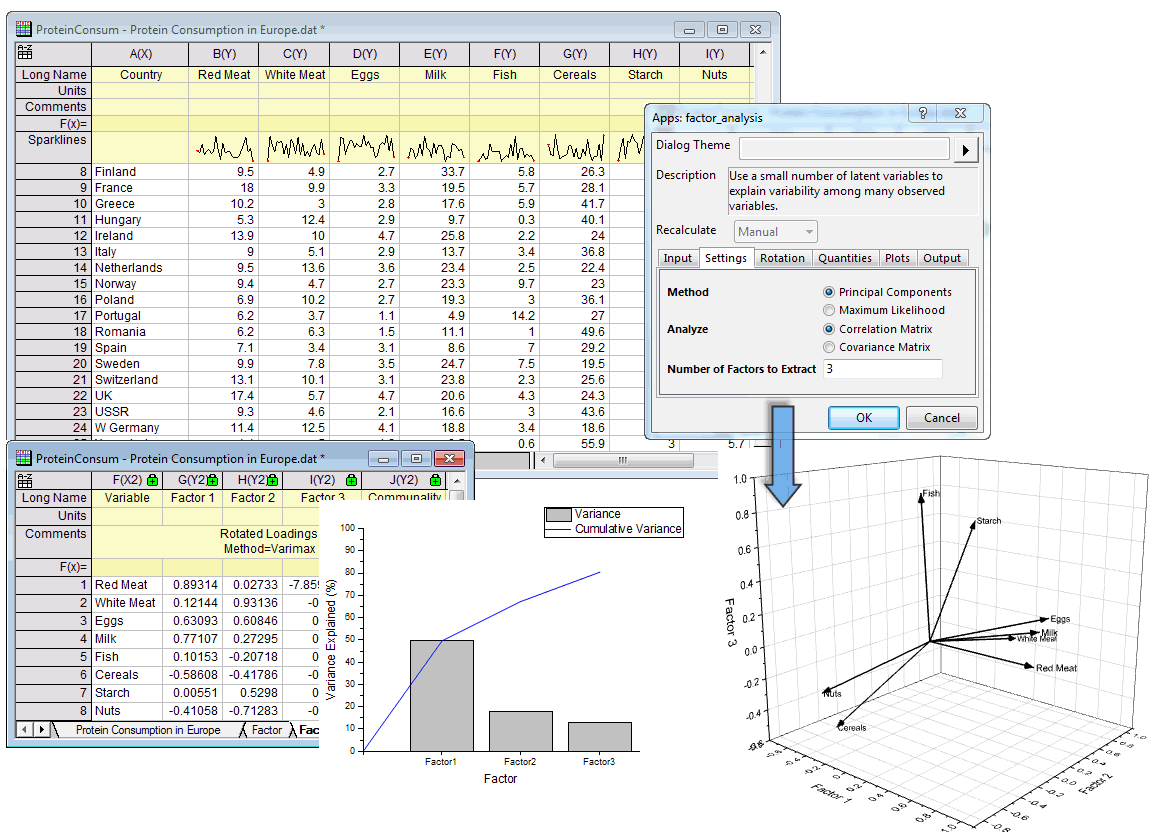

Screen Shot and Video:
Description:

PURPOSE
This app can be used to identify latent variables to explain variability of input data.
It supports two methods: Principal Components and Maximum Likelihood.
Two orthogonal methods and one oblique method can be used to rotate factors so that the loading matrix can be simple.

INSTALLATION
Download Factor.opx file, and then drag-and-drop onto the Origin workspace. An icon will appear in the Apps Gallery window.
NOTE: This tool requires OriginPro.

OPERATION

1. Make a worksheet for input data active. Click the Factor Analysis icon in the Apps Gallery window.
2. In the dialog, select columns from the worksheet as Variables in Input tab.
If observation label column exists, choose it as Observation Labels.
3. In the Settings tab, choose a factor analysis method.
Two methods are available: Principal Components and Maximum Likelihood.
For the first method, you can choose to analyze Correlation or Covariance matrix.
For the second, you can set Maximum Number of Iterations.
In both methods, you can set Number of Factors to Extract, and it must be no more than number of variables in the input data.
4. In the Rotation tab, choose a method to rotate factor loadings from Method drop-down list.
Four methods are available: NoneQuartimaxVarimax and Promax.
For the last three methods, you can choose Maximum Number of Iterations in rotation.
For Promax method, you can set a value to Power, and it must be greater than 1.
5. In the Quantities tab, choose which quantities to compute.
Quantities options include Descriptive StatisticsCorrelation MatrixUnrotated Loadings, Residual MatrixScore Coefficients and Scores.
If rotation is chosen, Rotated Loadings and Rotation Matrix are also available.
6. In the Plots tab, following plots are available:
Graph Type option can determine whether to create 2D (first two factors) or 3D (first three factors) for last three graphs.
7. Click OK button. A report sheet, a report data sheet and a plot data sheet will be created.

Sample OPJU File
This app provides a sample OPJU file.  Right click on the Factor Analysis icon in the Apps Gallery window, and choose Show Samples Folder from the short-cut menu. A folder will open. Drag-and-drop the project file FactorSample.opju from the folder onto Origin. The Notes window in the project shows detailed steps.
Note: If you wish to save the OPJU after changing, it is recommended that you save to a different folder location (e.g. User Files Folder).

NOTES

1. If a row in input data contains one or more missing values, the entire row will be excluded from the analysis.
2. Number of rows for input data must be greater than number of variables.
