Flood Impact on the Morphology of Channels Abandoned by Rivers


Show more of same type...            Show more using same keywords...

Download this project to learn how to make the graph.

The study area is a river dead-zone located at the confluence between the main channel and a cut-off meander. Water velocities measured by acoustic Doppler current profiler (aDcp) during a flood were interpolated and depth-averaged.

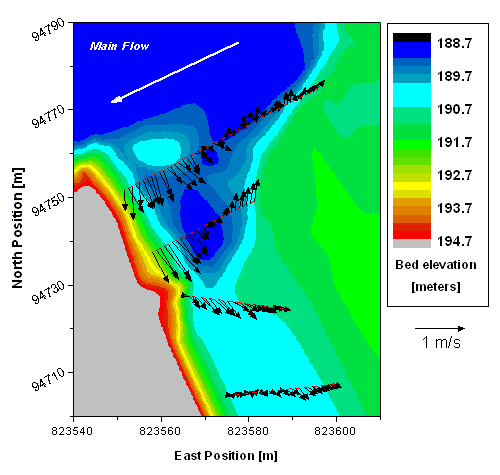

The superposition of the velocity vectors and the bed elevation contours outlines the relationship between the recirculating flow and the river morphology.

The depth elevation model was imported into a matrix in Origin and plotted as a 'Contour Color Fill' plot. Flow velocities were externally processed and then imported into a worksheet in Origin and plotted as a 'Vector XYAM' plot.

Both plots were then merged and superimposed.

Jérôme Le Coz is a PhD student in fluvial hydraulics and sediment transport. He is studying the impact of floods on the morphology of channels abandoned by rivers.
