File Exchange > Data Analysis >    Cyclic Voltammetry

Author:
OriginLab Technical Support
Date Added:
6/12/2017
Last Update:
2/17/2023
Downloads (90 Days):
597
Total Ratings:
18
File Size:
1295 KB
Average Rating:
File Name:
CyclicVolt...ry.opx
File Version:
1.30
Minimum Versions:
License:
Free
Summary:

Perform multi-peak fitting and integration of cyclic data.

Screen Shot and Video:
Description:

  • Purpose
    This app can be used to perform peak analysis of forward and backward traces of cyclic voltammetry data. A region of interest (ROI) can be set for the traces, and peaks can be manually assigned and fitted after baseline is subtracted. The integrated area within the ROIs and the peak properties of the fitted curves can be reported to a worksheet.
  • Installation
    Download the file "CyclicVoltammetry.opx", and then drag-and-drop onto the Origin workspace. An icon will appear in the Apps gallery window.
  • Operation

         Note: If you have data files from Gamry Instruments, you can use the Import Gamry Voltammetry Files App to import your data.

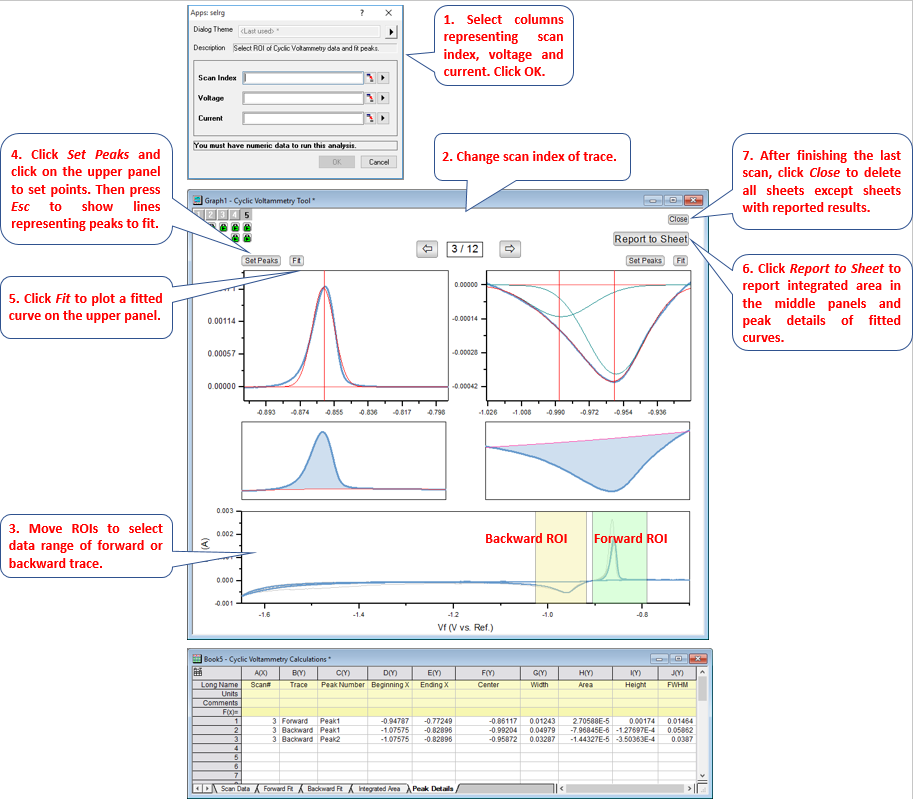

  1. Click the Cyclic Voltammetry icon in the Apps Gallery window to open the dialog.
  2. Select columns representing scan index, voltage and current.
  3. Click OK.  A graph named Cyclic Voltammetry Tool and a workbook named Cyclic Voltammetry Calculations will be generated.
  4. Click left or right arrow at the top of the graph to change scan index.
  5. In the bottom panel of the graph, move/resize the rectangles to define the region of interest (ROI) for the forward and backward traces.
  6. The two middle panels show data within ROIs with a an asymmetric least square (ALS) baseline(ALS) .
  7. The two upper panels show data within each ROI, after baseline has been subtracted.
  8. Click Set Peaks button and then double-click inside the upper panels to set desired number of peaks and the approximate peak locations.
    Up to 10 peaks can be assigned per trace. To assign fewer than 10, simply select desired number of peak locations and then press Esc key.
    Lines representing peaks chose will be displayed.
    To change or re-assign the peak locations, simply click the Set Peaks button again, to start over.
  9. Click the Fit button to perform multi-peak fitting of the data using the specified initial peak locations
  10. Once satisfied with the fit, press the Report to Sheet button. The integrated area calculated from the shaded area in the middle panels, and the peak fit parameters will be added to a  report workbook in two separate sheets named Integrated Area and Peak Details.
  11. After manually analyzing all scans, click Close to close graph page and delete all intermediate sheets except the report sheet.

  • Sample Files

             The App contains an Origin project file with sample data. Right-click on the App icon and select Show Samples Folder to access the file.

Updates:

v1.3: 02/17/2023 Better specify cyclic direction.
v1.11: Fix peak report bugs.
v1.1: Fix bugs with comma separator data.

Reviews and Comments:
03/29/2023OriginLabHi weberd6,
The V-I data has multiple traces. One trace has one cycle (one forward and one backward segment). Each trace has an index(like 1 or 2,3....) to represent it.

OriginLab

03/27/2023weberd6How do I know what my scan index is?

03/27/2023weberd6What is the scan index?

04/05/2022OriginLabHello eugenio.lacvava, we have sent an email to you asking for your data.

04/03/2022eugenio.lacvavaI am having difficulties on applying this app to my cyclic voltammetry dataset. My scans start and terminate on the positive side of the scanrange.
The problem presents itself only on my dataset because with the sample the app works as expected.
the problem is related to the following error in origin when i try to run the app on my dataset:

"vfind:X-Function failed to execute! Failed to resolve range string, VarName = ix, VarValue = [calcoli]Dataset=iscan"

how can i solve it?

06/15/2021yukiOriginlabHi chintiya27, Please take a look at the Description above to get the usage of this app.

OriginLab Technical Support

06/15/2021chintiya27マニュアルが無く使い方が分からない

02/19/2020OriginLabHi soykim317,
Please send your data file/Origin project to tech@originlab.com. In the e-mail please mention you had posted on this App page.
Thanks,
OriginLab Tech Support

02/19/2020soykim317When I perform the analysis, I see only one panel (different from the screenshot), and it does not work as described here. The link for contacting the author is invalid. Could you help?

12/12/2019OriginLabHi gokhanozgenc,
the Cyclic Voltammetry App only supports one cycle (one forward and one backward segment) in one trace. If you have multiple cycles in one trace, you can use the Hysteresis App to split them and output as stacked data. Then you can use the Cyclic Voltammetry App to perform peak analysis.
Please download the Hysteresis App here: https://www.originlab.com/fileExchange/details.aspx?fid=264
