Connect to Bio-Logic MPR files.

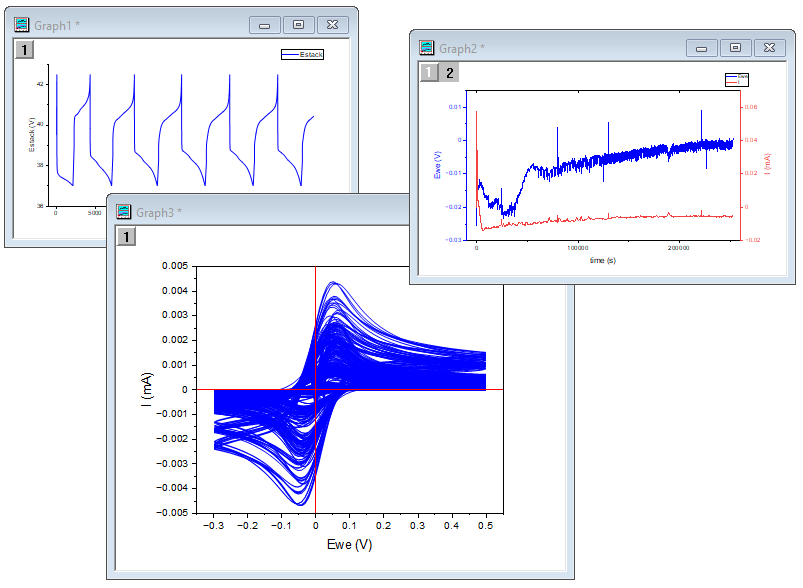

Screen Shot and Video:

This App connects the Origin project to BioLogic MPR (*.mpr) files.


This App is not pre-installed with Origin. To install, click Data: Connect to File: Add New.... The App Center opens listing only Connector Apps. Click the Download and Install button beside BioLogic Connector to install the App.

Basic Usage
  1. With a worksheet active, click on the Data menu.
  2. To connect to a local file, click Data: Connect to File: BioLogic and select the file. To connect to web data, click Data: Connect to Web and enter the URL.
  3. Once a connector is added, click the connector icon in the upper-left corner of the book to open a popup menu with various commands.
  4. By default, connector-imported data are NOT saved with the project file. To save a book's data with the project file, click the connector icon in the upper-left corner for that book and uncheck Exclude Imported When Saving. Note that each book has its own Exclude setting.


v1.31: Support MPR new format. Support variable selection (Origin 2024 or later).
v1.30: Support more variable types.
v1.20: Support more variable types and custom units.
v1.10: Support more variable types.

Reviews and Comments:
12/06/2023OriginLabHi duoduoss,
The new version, v1.31 supports variable selection. Please upgrade your Origin to v2024 to try it.

06/19/2023OriginLabHi duoduoss,
Thank you for your suggestion. We will improve it in the future version.

06/17/2023duoduosscannot select data columns, just import automatically without the actual desired parameters

08/05/2022Jonas_12345The app (v1.2) works great with files of all measurement types that we tested (CA, CP, CV, PEIS, ...)

08/25/2020abwongNeeds more documentation about how to use. Also, when I did figure it out, it just imported 11K zeroes (the data set is not 0 BTW) and crashed origin 2020... Useless as of writing.

08/10/2020ginomenImports only zeros... why?
