File Exchange > Stats >    Chi-Square Goodness-of-Fit Test

Author:
OriginLab Technical Support
Date Added:
12/7/2016
Last Update:
6/17/2026
Downloads (90 Days):
154
Total Ratings:
7
File Size:
481 KB
Average Rating:
File Name:
Chi-Square...st.opx
File Version:
1.22
Minimum Versions:
License:
Free
Type:
App
Summary:

Compare observed and expected frequencies with the Chi-Square test.

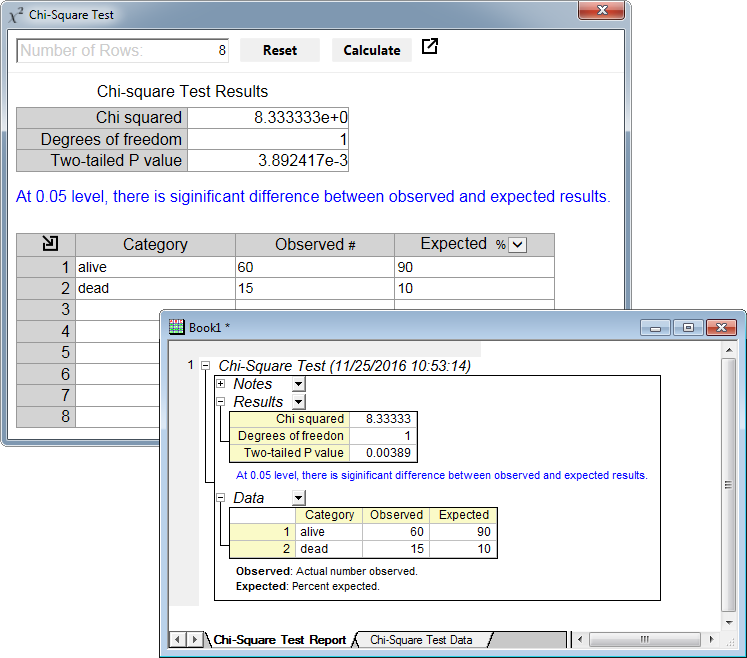

Screen Shot and Video:
Description:

INSTALLATION
Download the Chi-Square Goodness-of-Fit Test .opx, and then drag-and-drop onto Origin workspace. An icon will appear in the Apps Gallery window.

OPERATION

  1. Click the Chi-Square Goodness-of-Fit Test icon to open the dialog.
  2. Specify the data from: Raw or Summarized, and customize significance level.
  3. Enter data in the table, or click the button in the header to select and import a column dataset in the Worksheet.
  4. The Expected data should be one of the following types:
    • Equal Proportion (1/k): When select this option the expected value not need to be entered. It will auto calculated by 1 divided by the number of categories(rows) to be tested.
    • Proportion (0-1): The sum of expected fraction must be 1.
    • Counts: The total of the observed count and the expected count must be equal.
    • Percentage (%): The sum of expected percentages must equal 100.
    Choose the correct type using the drop-down in the Expected column header.
  5. Click the OK button to display results in the dialog. Then it will create the result sheet in a new Workbook
    In the result sheet, it will output the Descriptive Statistics result, Individual Confidence Intervals table, Summary Report and Diagnostic Report with graph.

Updates:

v1.22 11/04/2026 Updated localization.
v1.21 11/02/2026 Updated localization.
v1.20 10/28/2026 Updated localization.
v1.19 10/23/2026 Fixed a bug.
v1.18 10/15/2026 New GUI and new report.
v1.17 6/13/2026 Updated localization.
v1.16 6/2/2026 Updated localization.
v1.15 3/19/2026 Fixed a bug.
v1.14 11/13/2025 Fixed a bug.
v1.13:
1) Fix high DPI issue.
2) Fix separators of numeric format bug.
3) New GUI.
v1.12: Improved accuracy.
