3D Surface with Point Labels


Show more of same type...            Show more using same keywords...

Download this project to learn how to make the graph.

Description:

This graph shows the topology of eastern California as a 3D colormap surface. The plot is overlaid with 3D scatters to highlight two special locations in the terrain.

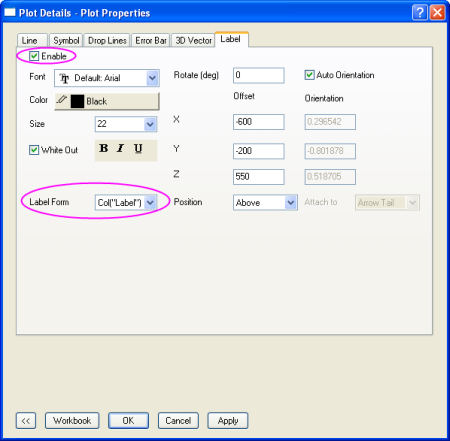

The point label is enabled for 3D scatters and can be customized in the Label tab of the Plot Details dialog.



Additionally, lines which connect the data points to the labels are added. This line has an annotation effect when the 3D graph is being transformed or rotated. To add this line, click on the graph to make it active and run the following command in the script window:

set %C -ql 5;
