Ternary Plot with Flexible Scale


Show more of same type...            Show more using same keywords...

Description:
This graph displays a ternary plot with flexible axis scale. The three axes of a ternary usually range from 0 to 1. In some cases, however, the data points are concentrated in a small area of the ternary space. Origin supports flexible axis scale to set the range to arbitrary values between 0 and 1. You can also use the zoom tool to change scale to a smaller region while maintaining proportion between the three axes.

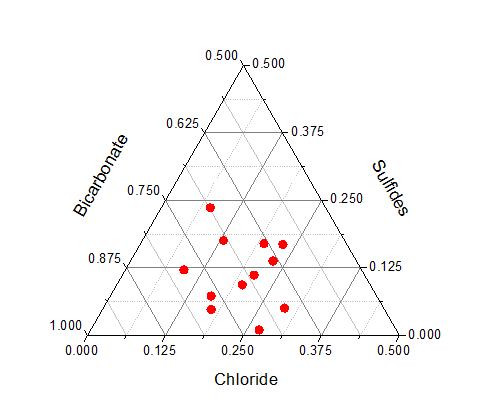

In the full range of the ternary scale, we can see that all data points are located in the left bottom area of the ternary.

Specify the axis scale on the Scale tab of the Axis dialog, or use the zoom tool. The three axes’ ranges must be proportional.
