In OriginPro, the Peak Analyzer is capable of performing non-linear curve fitting to the peaks with built-in or user-defined functions. Available built-in functions include:

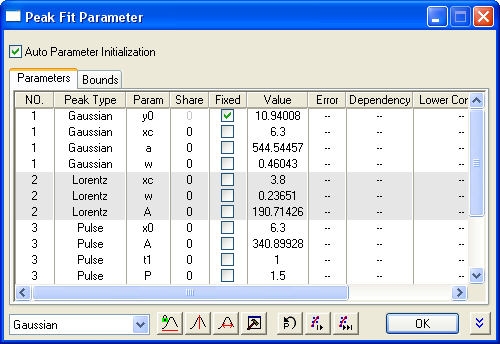

Peaks in a dataset may sometimes be described by different functions. For instance, the first peak might be Gaussian while the second is Lorentzian. With the Peak Analyzer, you can fit data using a different function for each peak.

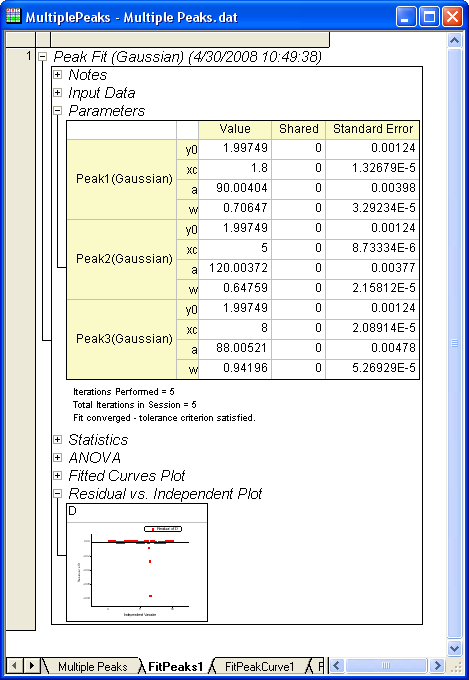

When the fitting is done, a peak report can be generated. In addition to the fitting statistics results such as Degree of Freedom and Reduced Chi-Sqr, the characteristics of each peak are also summarized in the report. Below is a sample peak report:

The fitted values and standard errors of the parameters are output to the fit peak report:
