Origin gadgets provide a quick and easy way to perform exploratory analysis on data plotted in a graph. You can perform the analysis on a specific range of the data plot by appropriately positioning a region-of-interest (ROI) object to select the desired range.

The ROI object provides a fly-out menu with various options that are tailored to each specific gadget. For example, the fly-out menu in case of the Quick Fit gadget allows you to easily change the fitting function. The fly-out menu in all cases has a Preferences option which opens a secondary dialog to customize desired settings for that Gadget.

Quick Peaks
Quick Peaks gadget picks peaks and integrates them within the ROI.
Cluster
Cluster gadget performs statistics and data editing on a cluster of data within a rectangular or elliptical ROI. OriginPro Only
Differentiate
Differentiate gadget calculates and plots the nth-order derivative for plotted data within the ROI.
Digitizer
Digitizer can easily digitize images of graphs such as photocopied, faxed, or scanned images.
FFT
FFT gadget that shows FFT result for a moving ROI window.
Integrate
Integration gadget provides easy way to integrate peaks within the ROI.
2DIntegrate
Results of 2D Integration Gadget on a color fill contour plot OriginPro Only
Interpolate
Interpolate gadget performs interpolation on plotted data within the ROI.
Intersect
Intersect gadget can calculate the intersection points of input curves and output the X,Y values to a worksheet. It supports more than two input curves.
QuickFit
Quick Fit gadget that performs linear or nonlinear fitting on ROI.
Quick Sigmoidal Fit
Quick Sigmoidal Fit gadget can quickly perform a sigmoidal fit in the ROI (Region of Interest) range.
Rise Time
Rise Time gadget analyzes rise/fall time for the step-like signal.OriginPro Only
Statistics
Statistics gadget performs simple descriptive statistics on ROI.
Vertical Cursor
Vertical Cursor gadget can be used to read X and Y coordinate values on stacked panel plots and tag them.

With Origin gadgets, you can quickly compute and output results, view updated results on screen when ROI is moved or resized, customize the output, including appending results to a worksheet for each ROI position and save settings as a Theme for future use. In addition, it is possible to do Batch Analysis from gadgets.

The gadgets include:

Cluster Gadget  View Screenshot
Cluster gadget performs statistics and data editing on a cluster of data within a rectangular or elliptical ROI.(Pro Only)
View Movie

View statistics on points inside and outside a rectangular or elliptical ROI. Gadget also supports editing, masking, copying and deleting points. (Pro Only)

Differentiate Gadget  Differentiate
Differentiate gadget calculates and plots the nth-order derivative for plotted data within the ROI.

Calculates and plots the nth-order derivative of selected data.

Digitizer Gadget  Digitizer
Digitizer can easily digitize images of graphs such as photocopied, faxed, or scanned images.

Import data by digitizing an image of a graph.

FFT Gadget  FFT
FFT gadget that shows FFT result for a moving ROI window.

View FFT spectrum of selected data.

Integration Gadget  Integrate
Integration gadget provides easy way to integrate peaks within the ROI.

Calculate the area under a curve, or between two curves. Centroid and FWHM are also reported.

2D Integration Gadget  2DIntegrate
Results of 2D Integration Gadget on a color fill contour plot(Pro Only)

Performs integration on an image plot or a contour plot produced from a matrix or XYZ data.(Pro Only)

Interpolate Gadget  Interpolate
Interpolate gadget performs interpolation on plotted data within the ROI.

Perform linear, spline, or b-spline interpolation of selected data.

Intersect Gadget  Intersect
Intersect gadget can calculate the intersection points of input curves and output the X,Y values to a worksheet. It supports more than two input curves.

Calculates the intersection points of two or more input curves and output the X,Y values to a worksheet.

Quick Fit Gadget  QuickFit
Quick Fit gadget that performs linear or nonlinear fitting on ROI.

Performs linear, polynomial, or nonlinear fitting of selected data.

Quick Peaks Gadget  Quick Peaks
Quick Peaks gadget picks peaks and integrates them within the ROI.
View Movie

Locate peaks, and compute area and other peak properties. Baseline correction is supported.

Quick Sigmoidal Fit Gadget  Quick Sigmoidal Fit
Quick Sigmoidal Fit can quickly perform a sigmoidal fit within the ROI.

Perform Sigmoidal fit of selected data.

Rise Time Gadget   Rise Time
Rise Time gadget analyzes rise/fall time for the step-like signal.(Pro Only)

 Analyzes rise/fall time for the step-like signal.(Pro Only)

Statistics Gadget  Statistics
Statistics gadget performs simple descriptive statistics on ROI.

Compute and display simple descriptive statistics of selected data on the graph.

Vertical Cursor Gadget  Vertical Cursor

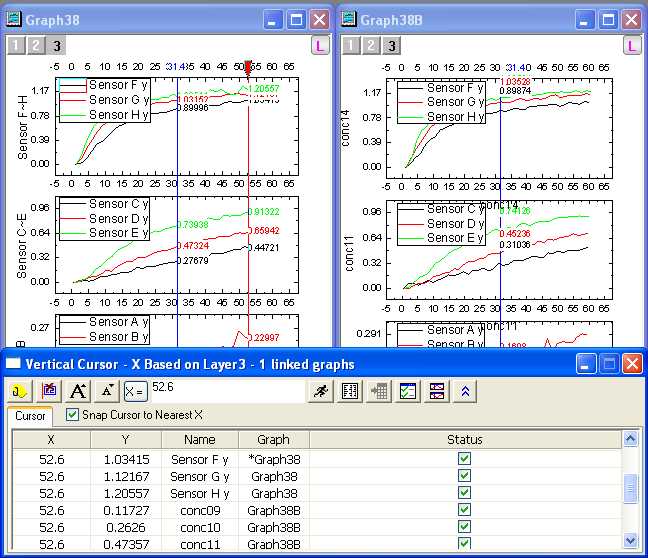

Vertical Cursor gadget can be used to read X and Y coordinate values on stacked panel plots and tag them.
View Movie

Read and tag X, Y coordinate values for data plots across multiple graphs that share the same X axis.
