Zoom and Pan inside Graph Layer using Keyboard or Mouse


Using the Rescale Tool, you can easily zoom and pan inside the graph layer with the mouse and scroll wheel, or with the keyboard.

With layer zooming and panning, the axis range automatically rescales, so there is no need to set from and to values in the axis dialog.

Note:
This feature is unavailable for certain types of plots, such as 3D, Polar, and Ternary.

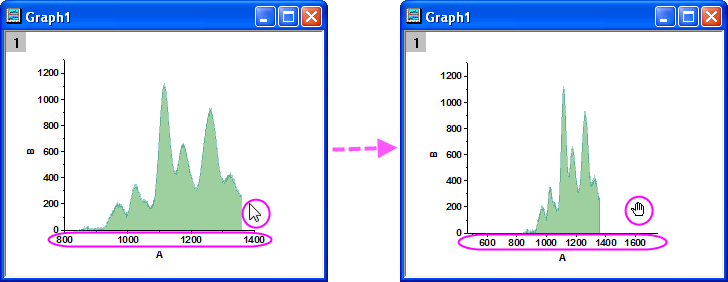

       Zoom the inside graph layer:


  • Click the Rescale Tool button. Press the Z key and use the mouse wheel or +/- key to zoom horizontally inside the graph layer. Press the Shift key to zoom vertically.

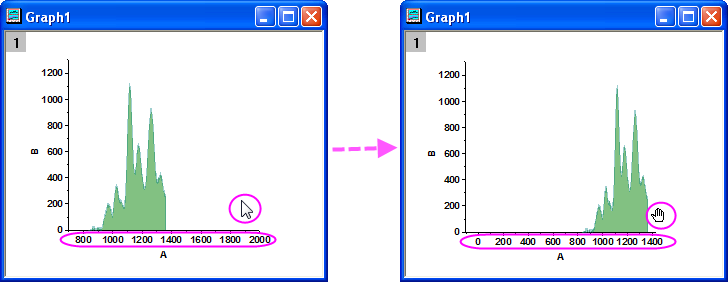

  •        Pan the inside graph layer:


  • Click the Rescale Tool button and drag the plot horizontally or vertically to pan the plot to a desired location. You can also use arrow keys to perform the same action.

  • Click the X key and use the mouse wheel or the +/- key to pan horizontally inside the graph layer. Hold down the Shift and X keys to pan along the Y axis.

  •
